型号:R3D-DVxxxx-N

D225*W77.5*H127mm

产品规格

  • Efficiency
    >88% at typical load and 48Vdc input
  • Power Good Signal
    On delay 100mS to 500mS
  • Rise Time
    75mS maximum at 48Vdc full load
  • Output Protection
    SCP,OPP,OCP,OVP,OTP
  • Input Protection
    Input Reverse Protection,OVP,UVP
  • Operating
    0℃~50℃
  • Storage
    -40℃~70℃
  • The power supply meet EN60950,EMC,EMI Class A level

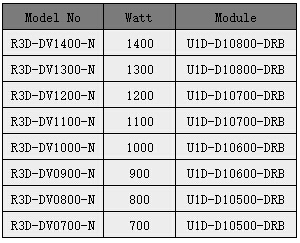

  • Power Range

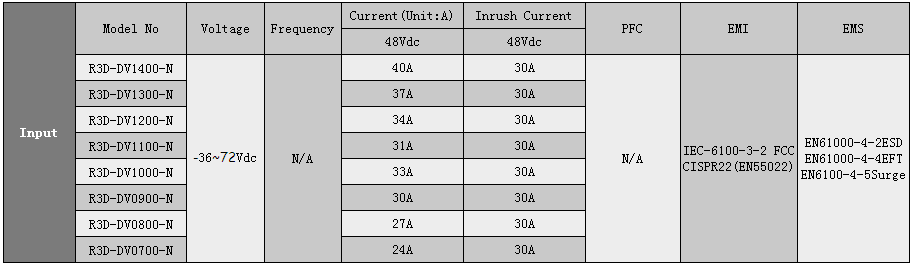

  • Input Condition

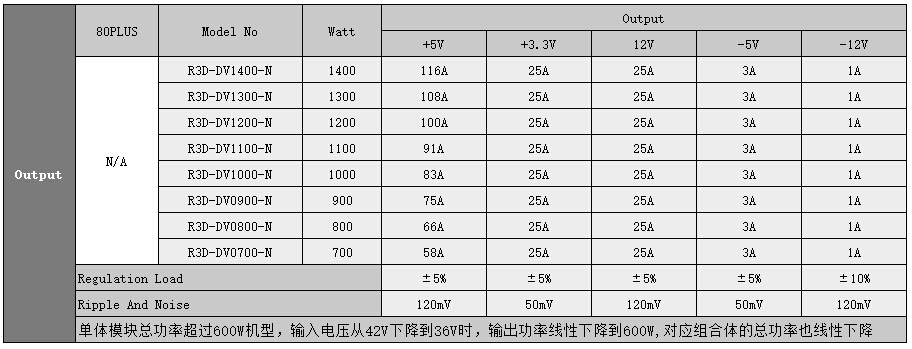

  • Output Range
